Ürün Açıklaması:

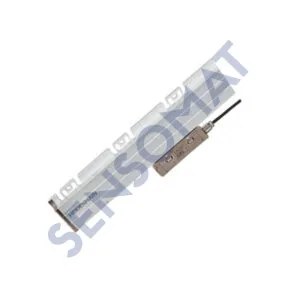

Heidenhain 557679-10 (LC 183) Absolute sealed Linear encoder, length 1040mm, w/5.0um Accuracy, 1Vpp Output and 3.6 to 5.25V

Measuring length (1040mm)

Accuracy  (5.0um)

Grating period (20.000um)

Measuring step (10nm)

Output (1Vpp)

Data interface (EnDat 02 Synchronous serial, EnDat 2.2 w/incremental signal)

Electrical connection (14-pin male)

Protection (IP53)

Power Requirements (3.6 to 5.25V)
